Certified Precision Straight Edges Steel and Aluminum Up to 192"
We supply precision straight edges from 3 feet to 16 feet long for inspection and alignment applications.

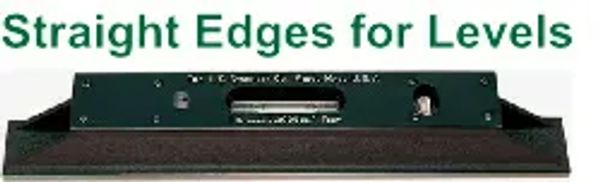

Standard and Custom Steel Straight Edges

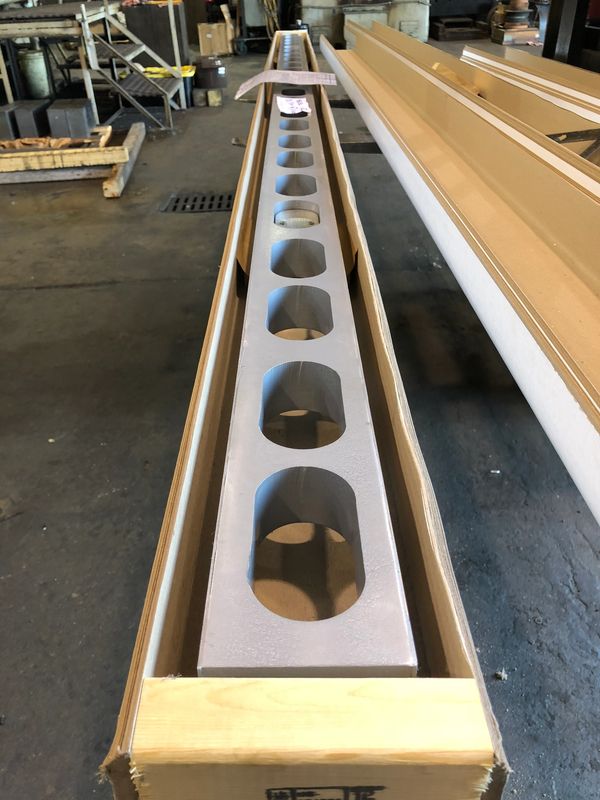

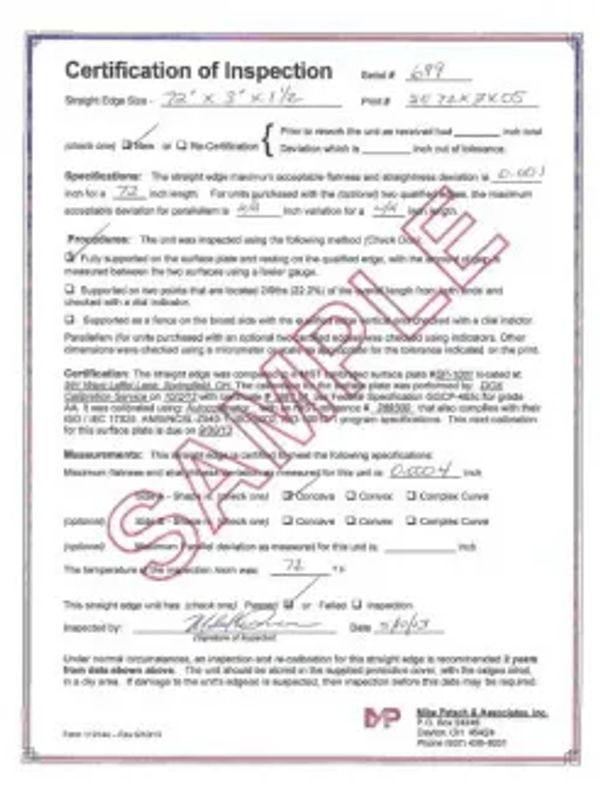

We manufacture a complete line of steel standard straight edges with lengths from 36" to 180". We provide certification document for each precision straight edge. We will check your precision straight edge using a certified granite surface plate with traceability to NIST standards. Our inspection procedures check the flatness and straightness for each straight edge.
Applications for Precision Straight Edges
Precision straight edges are useful for and checking the flatness of surfaces and leveling machine tools. In most of these applications, the straight edge is used as a reference surface to check your part. With a straight edge you can track and isolate potential sources of error. The amount straightness deviation usually measured by inserting a feeler gauge between the part and the straight edge. Our customers keep finding new and innovative uses in a wide range of industries.
Aluminum Extrusion Straight Edges - 3 meters to 16 feet
Precision straight edges for qualification of paved surfaces certified to exacting standards per EN13036-7
Large Straight Edges
120", 144", 168" - We manufacture straight edges for the really big stuff. Alignment of: Assembly fixtures, Wood flooring mills, Aircraft Body Joining, Table Saws, Injection molding machines, Jointers, Nuclear reactor piping, Glass display cases, Coupling alignment, Blanchard grinder chuck regrinding, Tunnel boring equipment, Rubber rollers for counter laminate feeding, Wood molding machinery, Fan blades, Railroad tracks and switch frogs, Sheet metal perforating equipment, Double disc grinder spindles, Router fences, Die cast machine platens, Chain & sprockets, Carpet trimming equipment, Roll forming dies, Reactor cooling pumps, Printing Presses, Oil refinery equipment, Prop Shaft Alignment, Coil slitting equipment, sputtering targets, Laminate flooring trimming, Print heads for large scale printers, Plywood manufacturing machinery, Blanking press, Natural gas pipeline equipment, pool tables, and Cement plant processing equipment.
Recalibration and Inspection
We inspect and complete our certification form on straight edges up to and including 12 feet long for only $250 each. If your unit was not severely damaged, but does require grinding we can quote a repair price upon inspection.
Our standard quality specifications for precision straight edges are:
- 0.001-inch from 36-inch up to 84-inch length
- 0.002-inch from 85-inch up to 144-inch length
- 0.003-inch from 145-inch up to 168-inch length
- 0.004-inch from 169-inch up to 180-inch length
- 0.012-inch for PaveFlat Units
- +/- 0.019 inch for PaveFlat-3M per EN1306-7-A.2
Shipping & Freight Options
We ship every straight edge in a pressboard carton that is designed to withstand the abuse of both UPS and LTL freight carriers. We ship under 96" via UPS, over 96" via LTL. We can work with your freight department or arrange for pickup with our prefered carrier. We strive to make this process as easy as possible.
Contact Us
MADE IN THE USA
Contact:
Don Petsch - Don@straightedgetools.com
